Scipy Cheat-Sheet

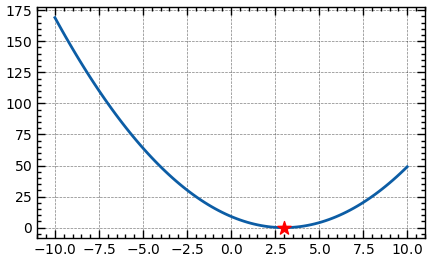

Optimization

$\min f(x)=(x-3{)}^2$

from scipy.optimize import minimize

f = lambda x: (x-3)**2

res = minimize(f, np.array([2]))
print(f'argmin: {res.x.item():.5f}, min: {res.fun:.5f}')

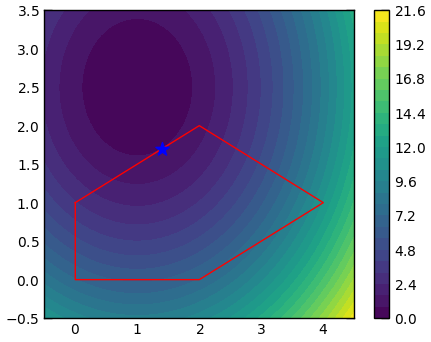

Optimization with Constraints and Bounds

$\min f(x,y)=(x-1{)}^2+(y-2.5{)}^2\text{s.t.}x-2y+2\ge 0,-x-2y+6\ge 0,-x+2y+2\ge 0,x\ge 0,y\ge 0$

f = lambda x: (x[0] - 1) ** 2 + (x[1] - 2.5) ** 2

# inequality constraints should be a form of "eq >= 0".
constraints = [dict(type='ineq', fun=(lambda x: x[0] - 2 * x[1] + 2)),
               dict(type='ineq', fun=(lambda x: -x[0] - 2 * x[1] + 6)),
               dict(type='ineq', fun=(lambda x: -x[0] + 2 * x[1] + 2))]
bounds = [(0, None), (0, None)]
res = minimize(f, np.array([1, 2.5]), bounds=bounds, constraints=constraints)
print(f'argmin: {res.x}, min: {res.fun:.5f}')

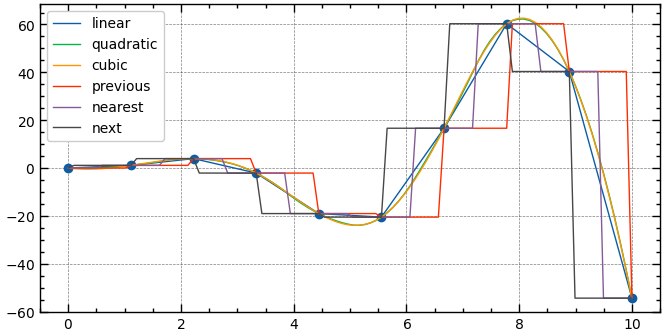

Interpolation

['linear', 'quadratic', 'cubic', 'previous', 'nearest', 'next']

from scipy.interpolate import interp1d

f = interp1d(x, y, kind='quadratic')
x_dense = np.linspace(0, 10, 100)
y_interp = f(x_dense)

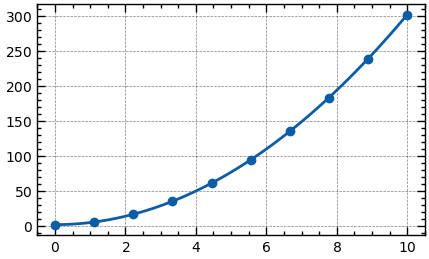

Curve Fitting

$y=a{x}^2+b$

from scipy.optimize import curve_fit

x_data = np.linspace(0, 10, 10)
y_data = 3 * x_data ** 2 + 2
f = lambda x, a, b: a * x ** 2 + b

popt, _ = curve_fit(f, x_data, y_data, p0=[0])

x_dense = np.linspace(0, 10, 100)
y_dense = f(x_dense, *popt)

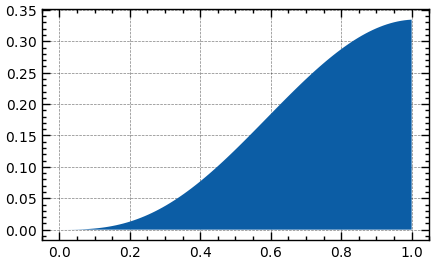

Integration

${\int }_0^1{x}^2\sin (2x)e^{-x}dx$

from scipy.integrate import quad

integrand = lambda x: x ** 2 * np.sin(2 * x) * np.exp(-x)
integral, integral_error = quad(integrand, 0, 1)

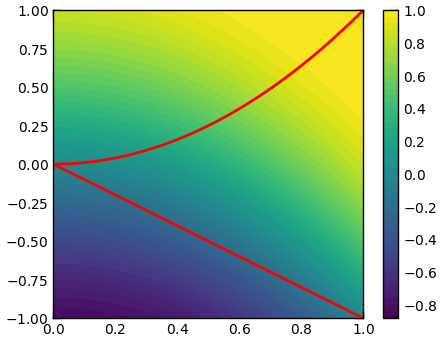

Multiple Integral

${\int }_0^1{\int }_{-x}^{x^2}\sin (x+y^2)dydx$

from scipy.integrate import dblquad

integrand = lambda y, x: np.sin(x + y ** 2)
lwr_y, upr_y = lambda x: -x, lambda x: x ** 2

integral, integral_error = dblquad(integrand,
                                   0, 1,
                                   lwr_y, upr_y)

Differential Equation

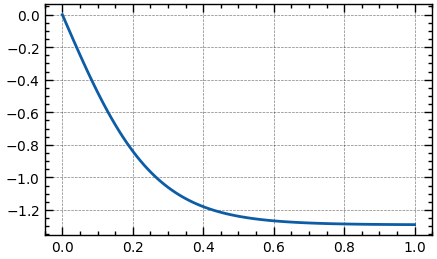

ODE

$v^{\prime }=\alpha v^2-\beta ,v(0)=0$

from scipy.integrate import odeint

alpha, beta = 3, 5

dvdt = lambda v, t: alpha * v ** 2 - beta
v0 = 0

t_range = np.linspace(0, 1, 100)
sol = odeint(dvdt, v0, t_range)
v_range = sol.ravel()

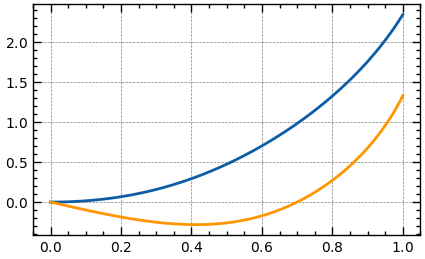

Coupled ODE

$\{\begin{array}{ll}{y}_1^{\prime }=y_1+y_2^2+3x,& y_1(0)=0\\ y_2^{\prime }=3y_1+y_2^3-\cos (x),& y_2(0)=0\end{array}$

def dSdx(S, x):
    y1, y2 = S
    dy1dx = y1 + y2 ** 2 + 3 * x
    dy2dx = 3 * y1 + y2 ** 3 - np.cos(x)

    return dy1dx, dy2dx


y1_0, y2_0 = 0, 0
S_0 = (y1_0, y2_0)

x_range = np.linspace(0, 1, 100)
sol = odeint(dSdx, S_0, x_range)
y1, y2 = sol.T

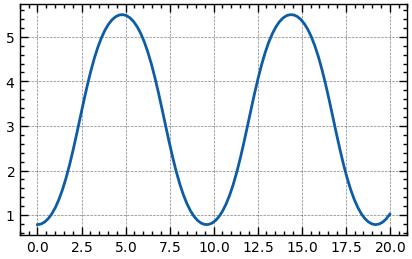

Second Order ODE

${\theta }^{\prime \prime }-\sin (\theta )=0$

Transform the higher order ODE to the coupled first order ODEs ($\omega =\frac{d\theta }{dt},\frac{d\omega }{dt}=\sin (\theta )$)

def dSdx(S, t):
    omega, theta = S
    d_omega = np.sin(theta)
    d_theta = omega

    return d_omega, d_theta

omega0 = 0
theta0 = np.pi / 4
S0 = (omega0, theta0)

t_range = np.linspace(0, 20, 100)
sol = odeint(dSdx, S0, t_range)
omega, theta = sol.T

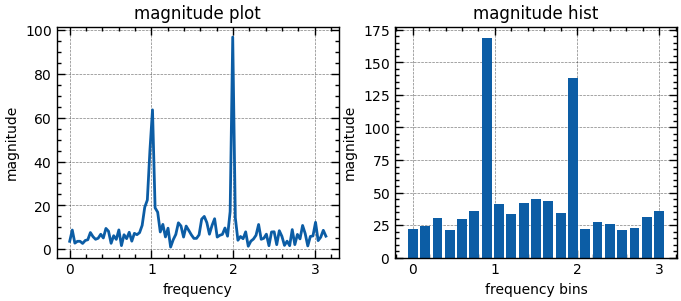

Fourier Transform

from scipy.fft import fft, fftfreq


t = np.linspace(0., 10 * np.pi, 200)
x = np.sin(2 * np.pi * t) + np.sin(4 * np.pi * t) + 0.5*np.random.randn(len(t))

N = len(x)
y = fft(x)[:N // 2]
f = fftfreq(N, t[1] - t[0])[:N // 2]

_, axs = plt.subplots(1, 2, figsize=(8, 3))
axs[0].plot(f, np.abs(y))
axs[0].set(title='magnitude plot', xlabel='frequency', ylabel='magnitude')

bin_size = 0.15
bins = np.arange(0, f.max() + bin_size, bin_size)
axs[1].hist(f, bins=bins, weights=np.abs(y), align='left', rwidth=0.8)
axs[1].set(title='magnitude hist', xlabel='frequency bins', ylabel='magnitude')
plt.show()

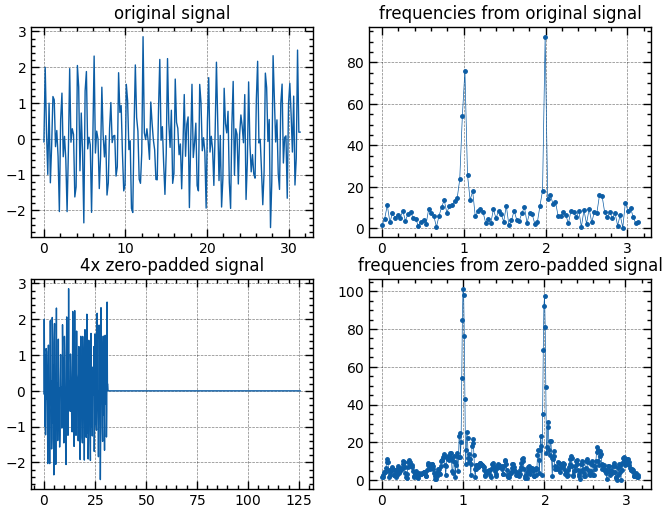

Fourier Transform with Zero-Padding

By using zero-padding, we can get smoother spectral plots

from scipy.fft import fft, fftfreq


_, axs = plt.subplots(2, 2, figsize=(8, 6))

t = np.linspace(0., 10 * np.pi, 200)
x = np.sin(2 * np.pi * t) + np.sin(4 * np.pi * t) + 0.5*np.random.randn(len(t))
N = len(x)
y = fft(x)[:N // 2]
f = fftfreq(N, t[1] - t[0])[:N // 2]
axs[0][0].plot(t, x, lw=1)
axs[0][0].set(title='original signal')
axs[0][1].plot(f, np.abs(y),'.-', markersize=5, lw=0.5)
axs[0][1].set(title='frequencies from original signal')

pad_ratio = 4
N *= pad_ratio
y = fft(x, n=N)[:N // 2]
f = fftfreq(N, t[1] - t[0])[:N // 2]

t = np.linspace(0., t.max()*pad_ratio, N)
x = np.concat([x, np.zeros(N-len(x))])
axs[1][0].plot(t, x, lw=1)
axs[1][0].set(title='4x zero-padded signal')
axs[1][1].plot(f, np.abs(y),'.-', markersize=5, lw=0.5)
axs[1][1].set(title='frequencies from zero-padded signal')

plt.show()

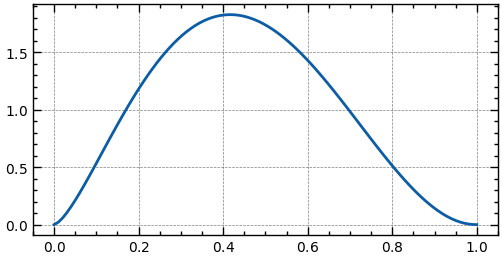

Statistics

$\mathrm{Beta}(\alpha ,\beta )$

from scipy.stats import beta

a, b = 2.5, 3.1
mean, var, skew, kurt = beta.stats(a, b, moments='mvsk') # Get the moments of the distribution
print(f'{mean=:.3f}, {var=:.3f}, {skew=:.3f}, {kurt=:.3f}')

_, ax = plt.subplots(figsize=(6, 3))
x_range = np.linspace(0, 1, 100)
ax.plot(x_range, beta.pdf(x_range, a, b)) # Plot the PDF
plt.show()

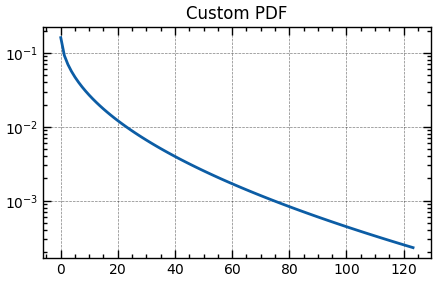

Custom Distribution

$f(x;a_1,a_2,b_1,b_2)=\frac{1}{2(a_1{b}_1+a_2{b}_2)}\left(b_1\exp \left(-\sqrt{\frac{x}{a_1}}\right)+b_2\exp \left(-\sqrt{\frac{x}{a_2}}\right)\right)0\le x\le \infty$

import scipy.stats as st

# Define a custom distribution
class mr_p_solver_dist(st.rv_continuous):
    def _pdf(self,x, a1, a2, b1, b2):
        return 1/(2*(a1*b1+a2*b2))*(b1*np.exp(-np.sqrt(x/a1)) + b2*np.exp(-np.sqrt(x/a2)))
my_rv = mr_p_solver_dist(a=0, b=np.inf)

# Random Sampling
print(my_rv.rvs(a1, a2, b1, b2, size=10))

_, ax = plt.subplots(figsize=(5, 3))
a1, a2, b1, b2 = 2, 3, 1, 2
x = np.linspace(my_rv.ppf(0.01, a1, a2, b1, b2), my_rv.ppf(0.99, a1, a2, b1, b2), 100)
y = my_rv.pdf(x, a1, a2, b1, b2)
ax.plot(x, y)
ax.set(title='Custom PDF', yscale='log')
plt.show()
